Professional Cine Lenses with Concrete Build

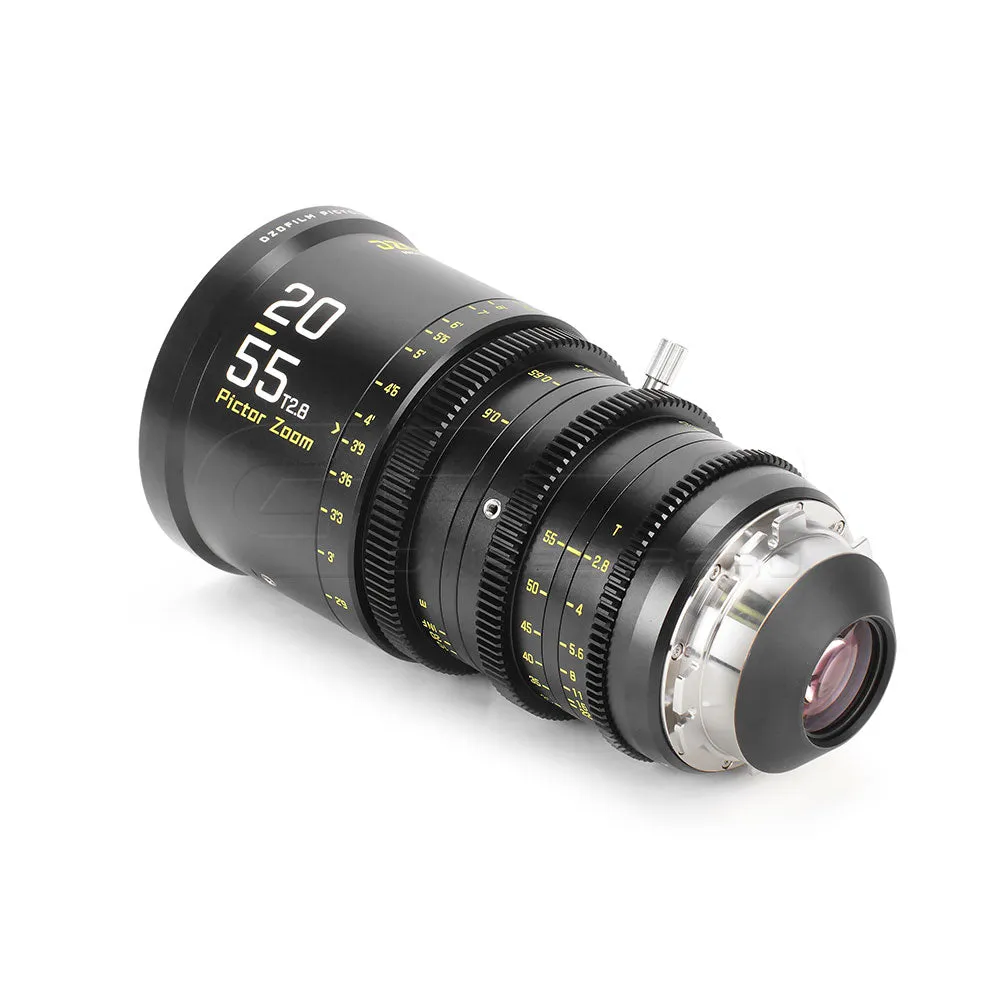

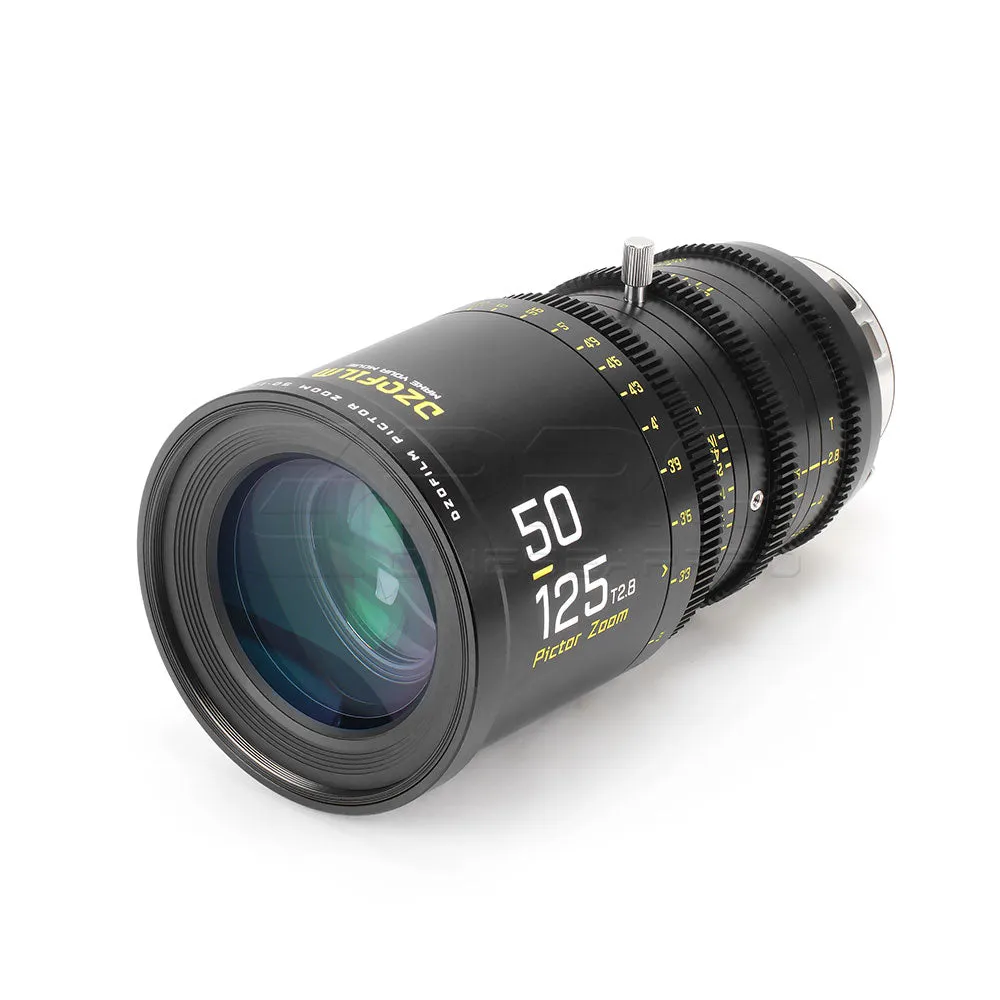

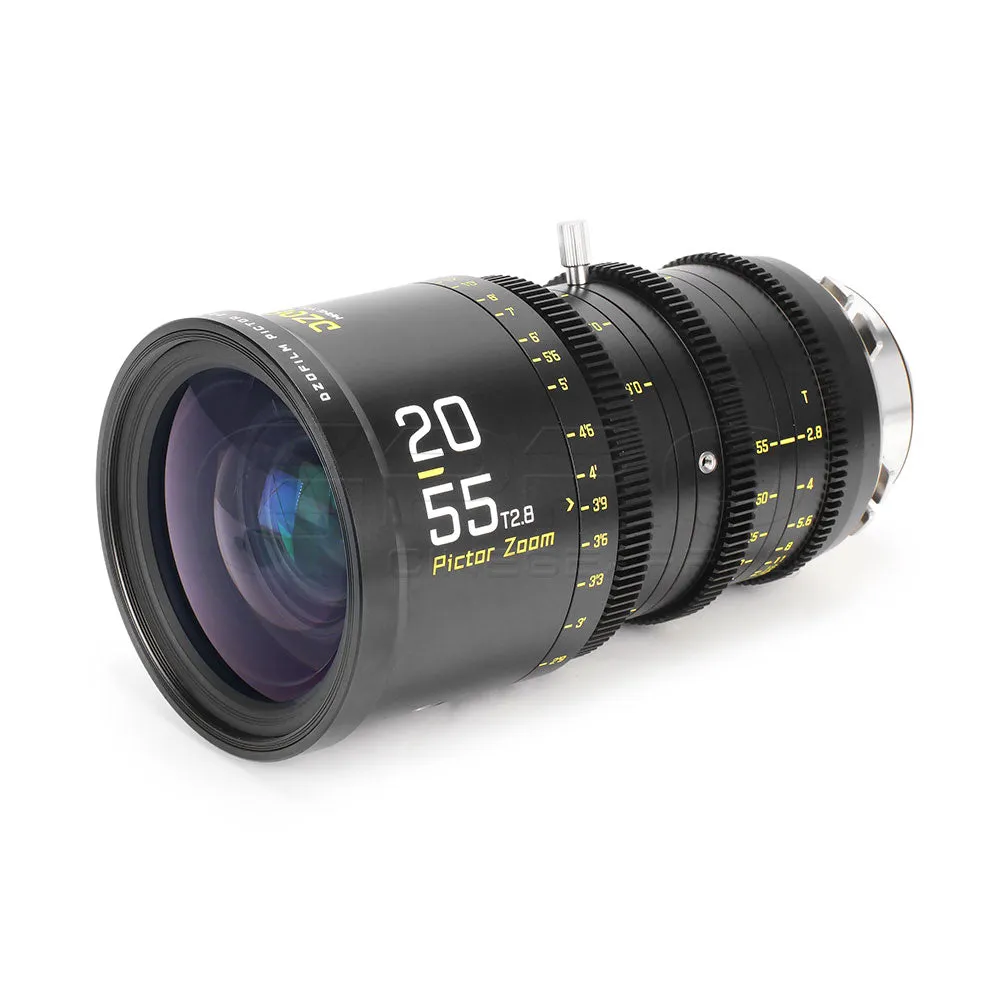

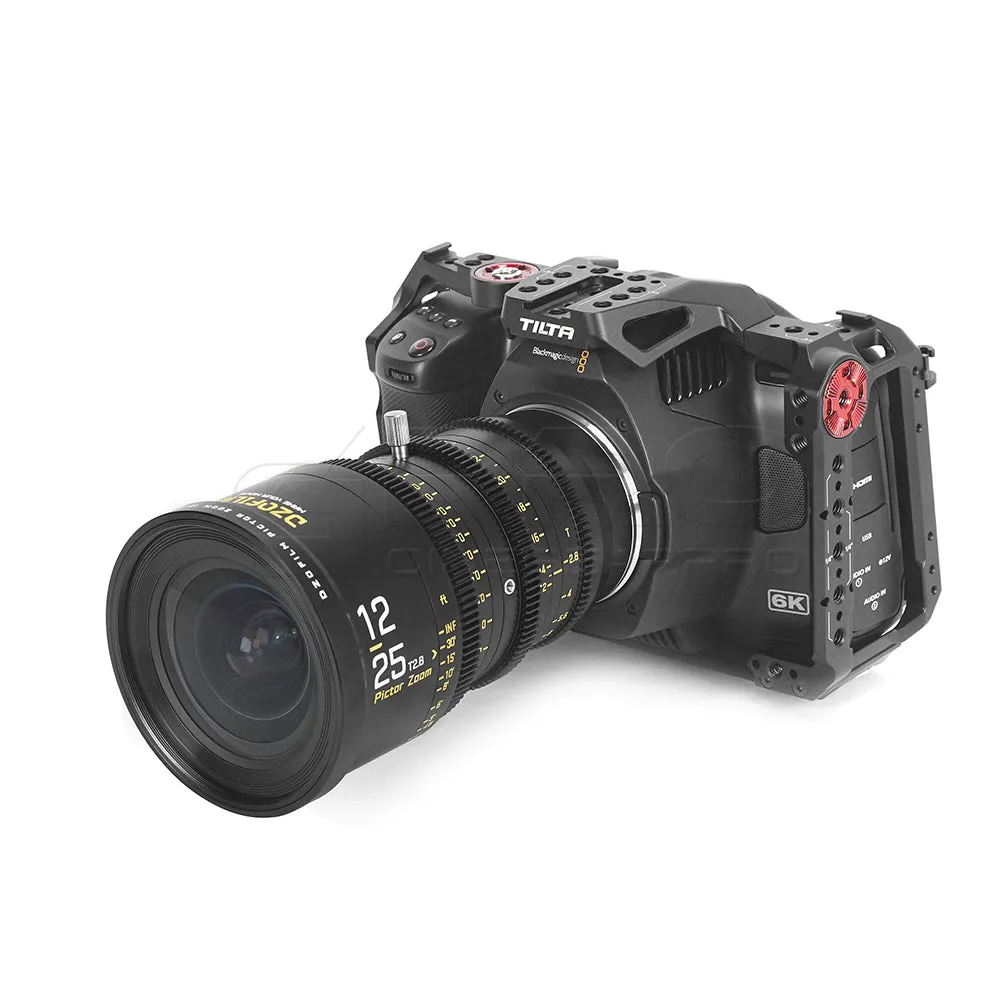

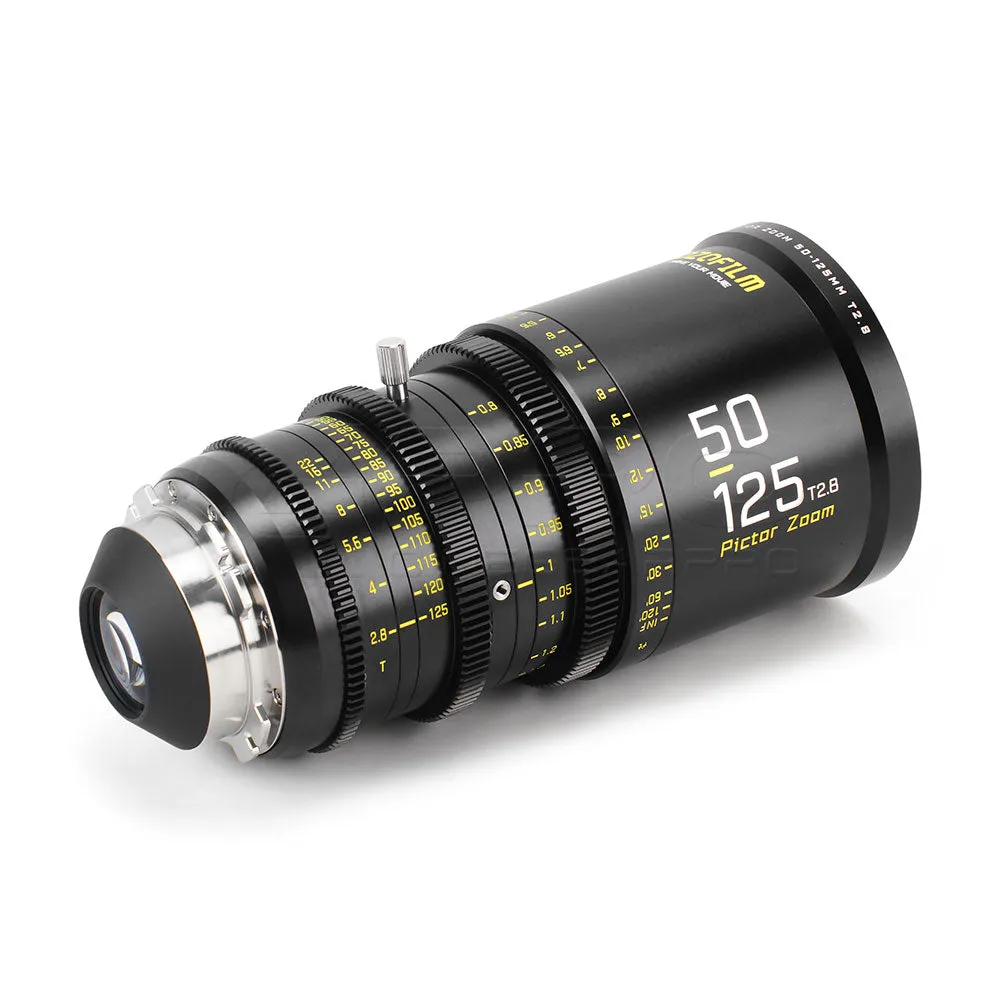

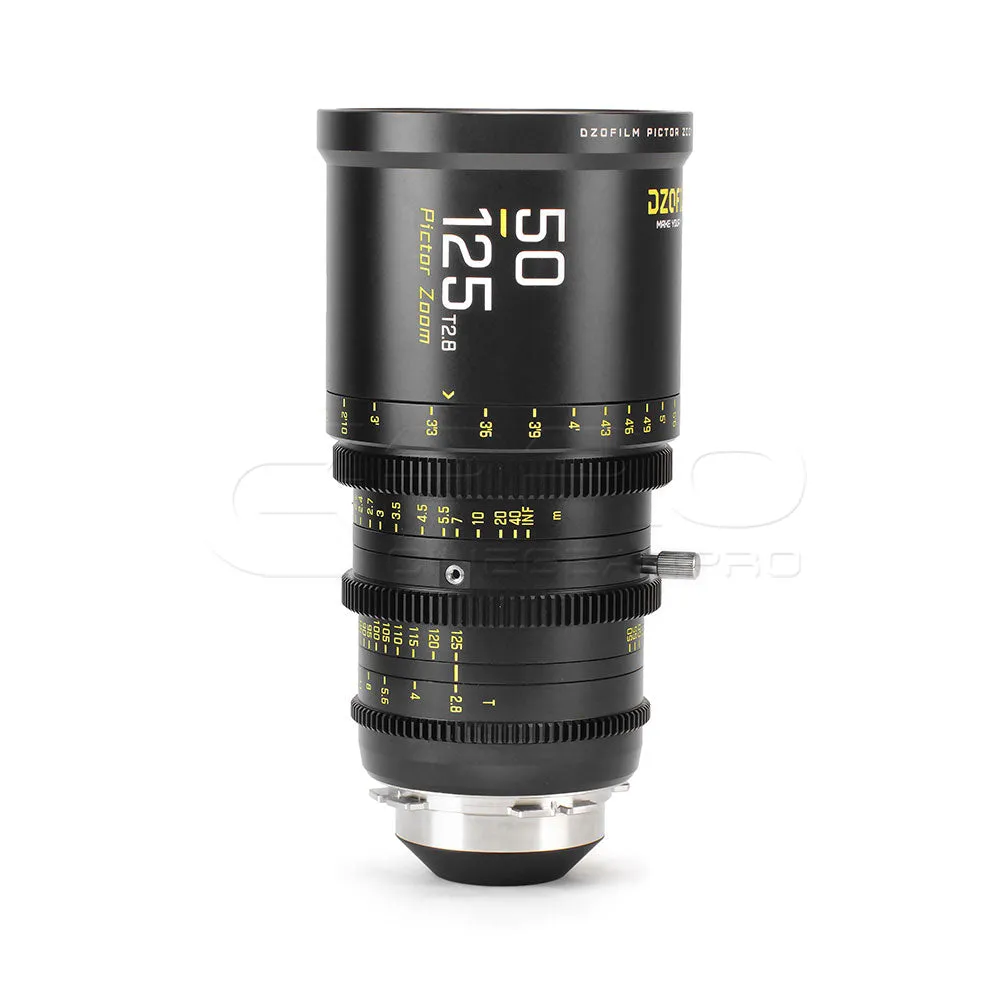

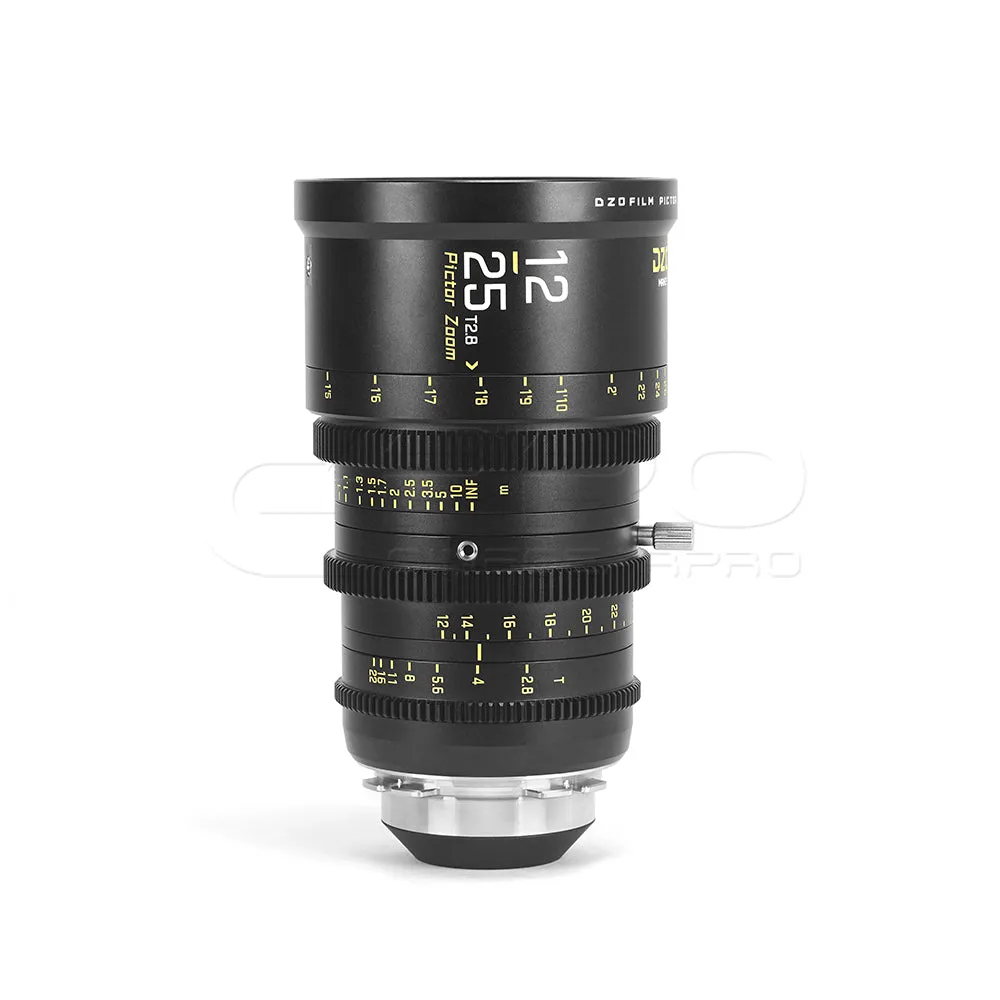

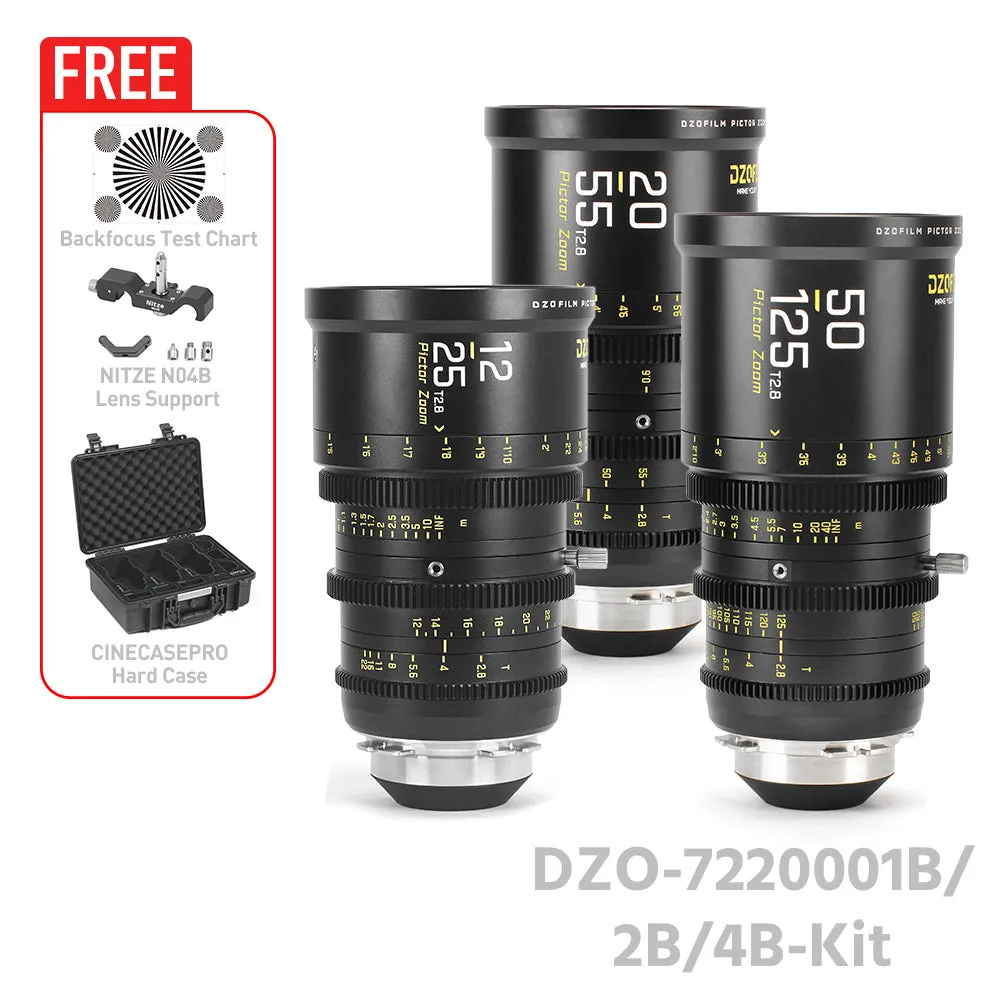

The new lineup of Pictor Zoom lenses from DZOFILM cover Super35/APS-C sensors. With a constant T/2.8 maximum aperture at every focal length, both lenses will cover a total range of 12-125mm at T2.8! Pictor Zoom lenses are completely parfocal and the aperture diaphragm consists of 16 blades for a beautiful smooth and creamy bokeh. These lenses work perfectly with cameras that feature a Super35/APS-C sensor like the Canon C200, ZCAM E2, BMPCC 6K, URSA Mini Pro 12K and the RED Komodo camera.
Capturing
The distortion of wide angle lens, exaggerates emotion of characters and highlights the dramatic expression.
Visual Effect
Capturing exaggerating movement, aggrandizes the rhythm of image and enhances the visual impact in the story.
Parfocal Design
Center image stay sharp during zooming in or out. No matter from close-up to wide shot, Or rapidly zoom out to long shot, Under Parfocal design, focus keeps still all the way along.
Minimal Breathing
Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.
Versatile and Ultra compact
At just 1.6kg (3.5 lbs), Pictor Zoom can be easily mounted on a crane, jib, tripod, ROV or other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting. Be a better Run-and-Gun Filmmaker and have no fear of any complicated scenes or quick shooting. Time saving without frequent lens changing, Pictor zoom, in no way miss an inspiring moment.
Gentle Sharpness & Vivid Look
From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.
Soft Bokeh Increases Sense of Separation.
Dreamy Bokeh & Esthetic Transition
Excellent subject seperation is achieved using 16 aperture blades which creates soft dreamy out of focus areas. This adds depth to the scene and isolates the subject from the background.
Speed up your Shooting!
Consistent Design & Higher Efficiency
Highly consistent in color and mechanical control, which satisfies the needs on demanding shoots. Cinema 0.8 standard pitch on Focus, Iris, Zoom ensures maximum compatibiltiy with multipe Follow Focus and wireless systems, Experience exeptional build quality and attention to even the smallest details with Pictor Zoom lens.
Seek for More Possibility
Interchangeable mount system
compatible with PL, E, EF and LPL mounts,
provides more possibility of shooting videos.
Specifications:
|
Focal length |
12-25mm |
14-30mm |
20-55mm |
50-125mm |
|
Mount |
PL/EF |
PL/EF |
PL/EF |
PL/EF |
|
T-Stop |
T2.8-22 |
T2.8-22 |
T2.8-22 |
T2.8-22 |
|
Image Circle |
31.5mm（S35） |
31.5mm（S35） |
31.5mm（S35） |
31.5mm（S35） |
|
Optical Construction |
21 Elements in 15 Groups |
21 Elements in 17 Groups |
18 Elements in 15 Groups |
18 Elements in 13 Groups |
|
Flange Distance |
52mm（PL）/44mm（EF） |
52mm（PL）/44mm（EF） |
52mm（PL）/44mm（EF） |
52mm（PL）/44mm（EF） |
|
Close Focus(From Sensor Plane） |
0.4m/1ft4in |
0.6m/2ft |
0.8m/2ft8in |
0.8m/2ft8in |
|
zoom ratio |
2.08X |
2.14X |
2.75X |
2.5X |
|
IRIS Control |
64.4° |
61° |
65° |
72° |
|
Focus Control |
270° |
270° |
270° |
270° |
|
Zoom Control |
100° |
100° |
100° |
100° |
|
Front Dia. |
95mm/3.74" |
95mm/3.74" |
95mm/3.74" |
95mm/3.74" |
|
Length |
150mm（PL）5.9”
$
68.82
$
52.94
$
41.65
$
83.23
$
64.02
$
84.75
$
65.19
$
22.95
$
86.48
$
66.52
$
68.33
$
52.56
$
75.84
$
58.34
$
35.00
$
71.03
$
54.64
$
39.99
|
