Product Details
＋

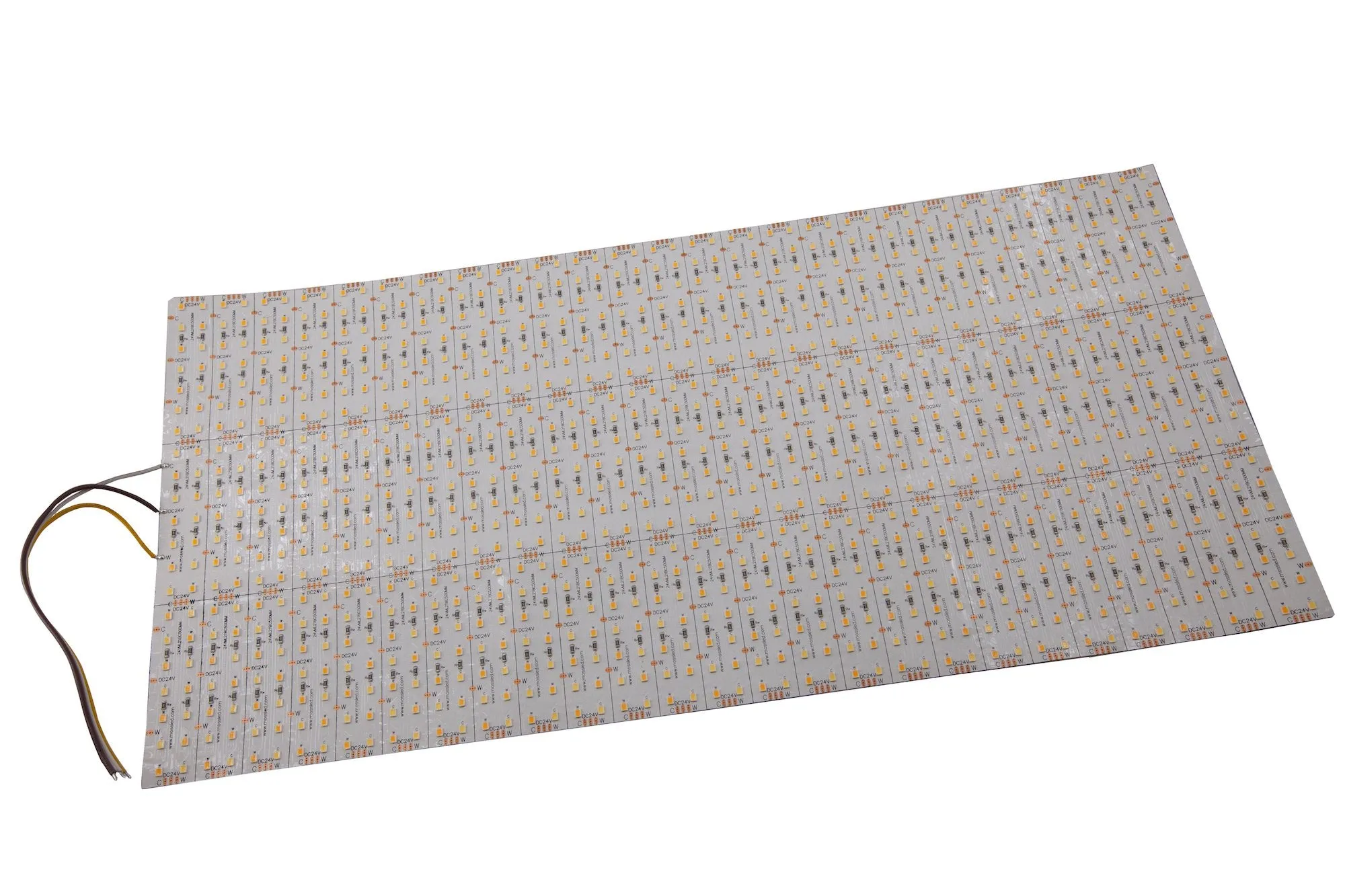

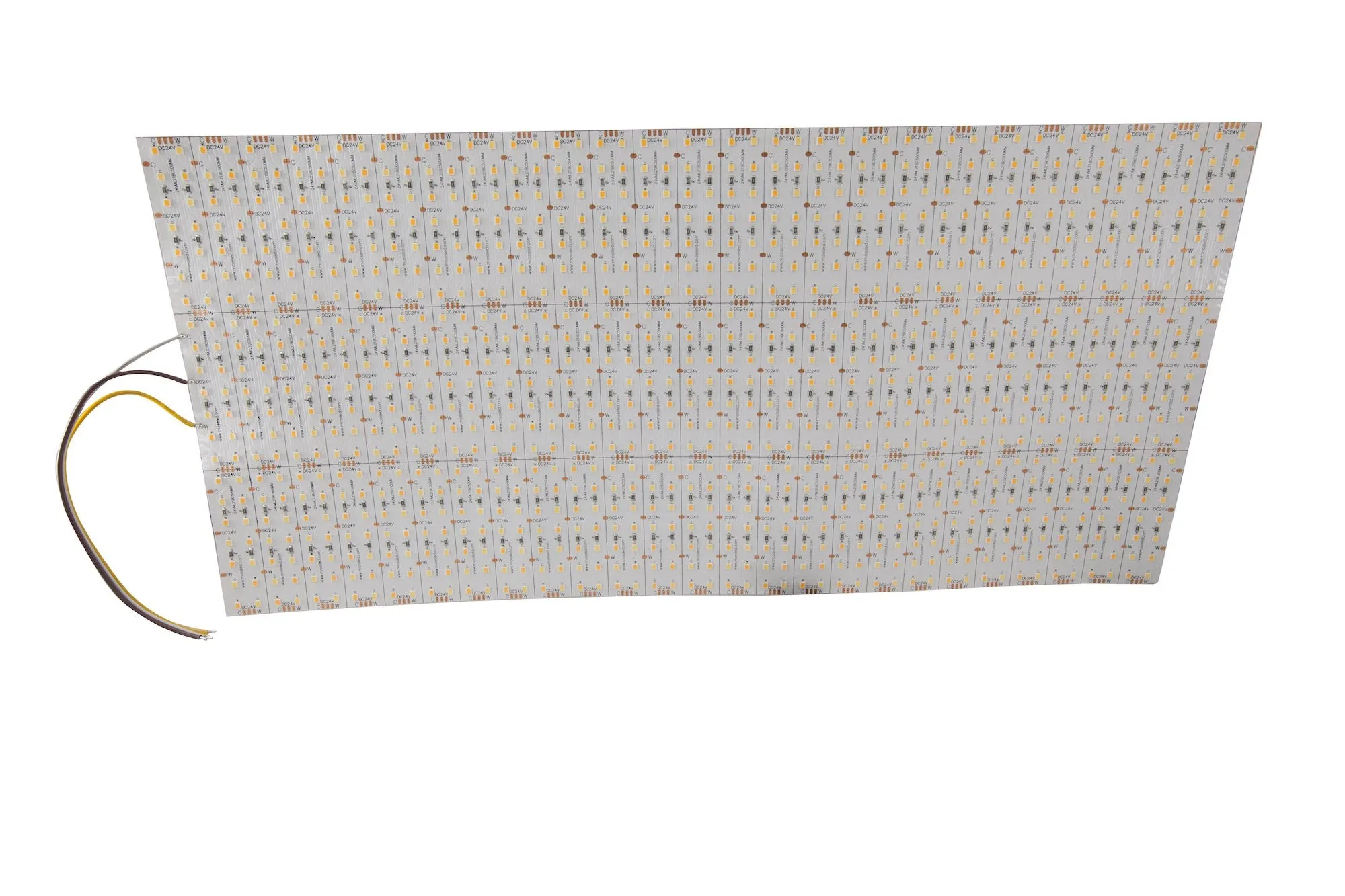

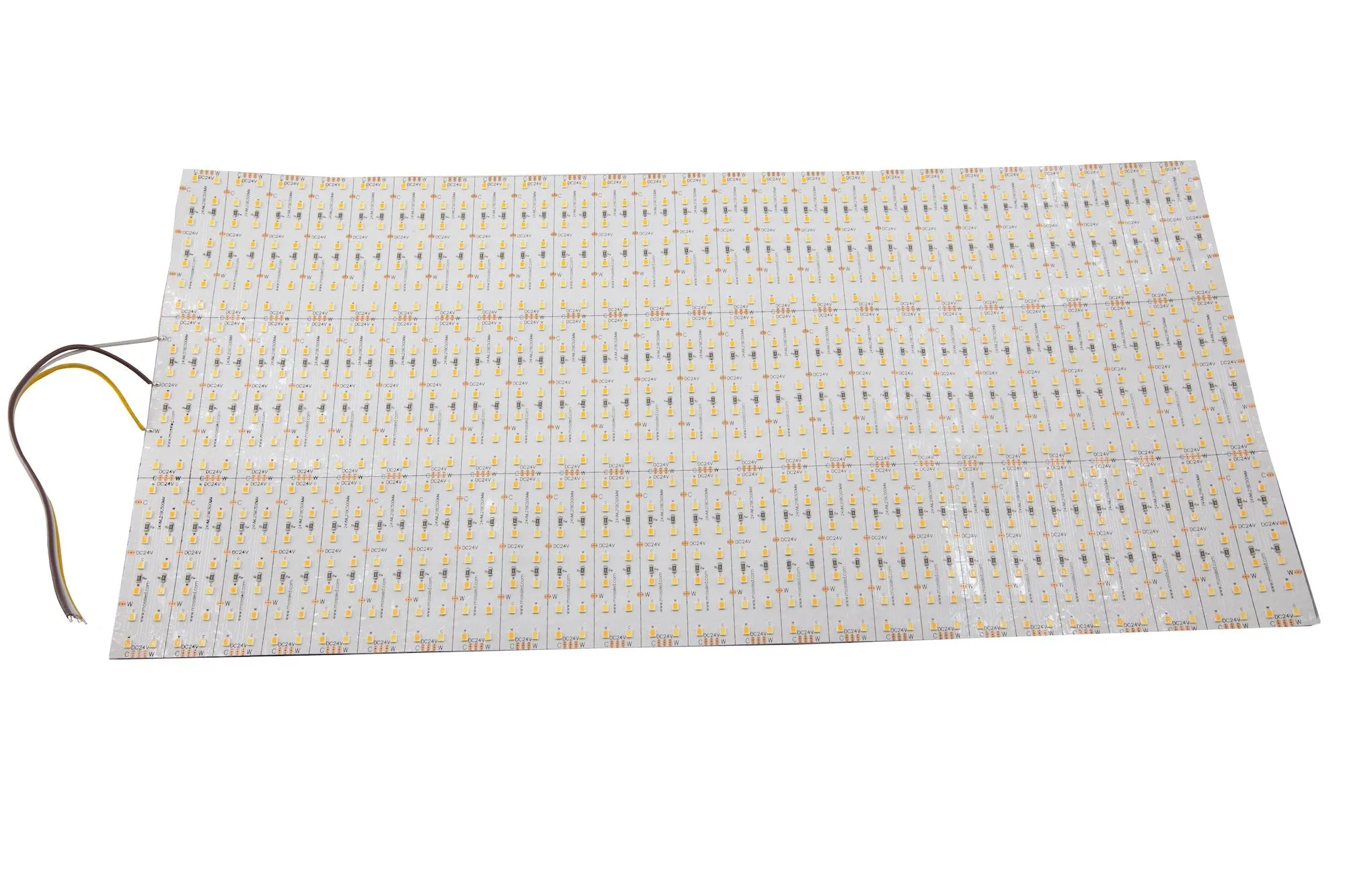

MultiLine 21-Way FlexLED Panel
Introducing the world's first 24V High Output, Flexible, Cuttable Colour-Temperature Adjustable Panel
This panel is designed to output an extremely large amount of light in a flexible, compact format. It is cuttable into 22 X 80MM rectangles which means this panel is not only great for covering larger areas but also small ones too. As this panel produces a fair amount of heat we recommend installing it onto a surface that will act as a heat sink such as a flexible thermal pad or similar non-conductive source.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color Cuttable Panel |
| Product Code | : | 24VML21BC2756500MM |
| CRI | : | >95 |
| Kelvin | : | 2700k - 5600k or 2700k - 6000k |
| PCB Color | : | White |
| Current, Rating | : | 10 A / panel |
| Voltage | : | 24 VDC |
| Wattage | : | 240 W / panel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full Combined/WW/CW | : | 17040 |
| Lumen / Watt | : | 71 LM/Watt |
| Lifetime* | : | 30,000 hours |
| Cutting Length | : | 20MM x 80MM Rectangles |
| LED Quantity | : | 525 x 5600k, 525 x 2700k |
| Number of Contacts | : | 3 |
| LED Type | : | 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB dimensions | : | L=500mm / W=240mm |
| Maximum Recommended Combined Panel | : | 8 Panels |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M adhesive tape |
DOWNLOADS
-
Specification Sheet
