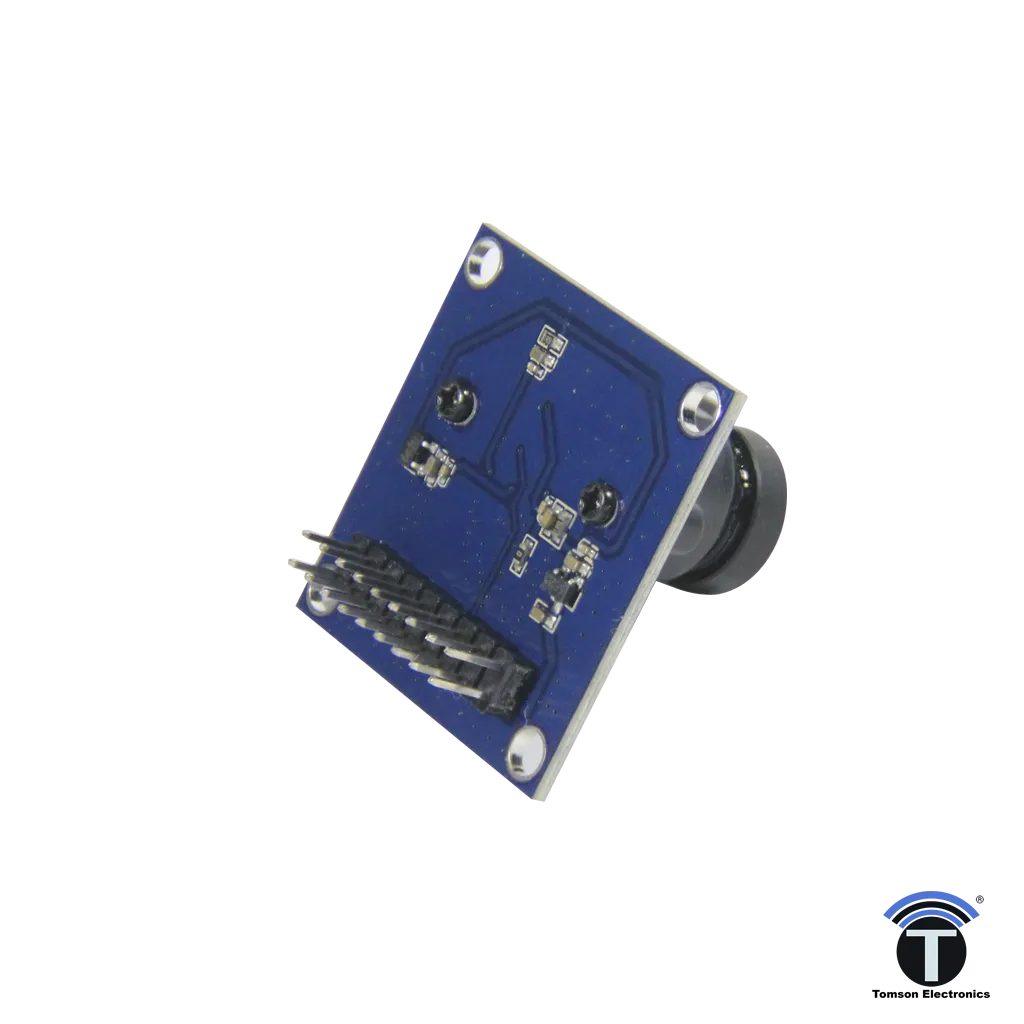

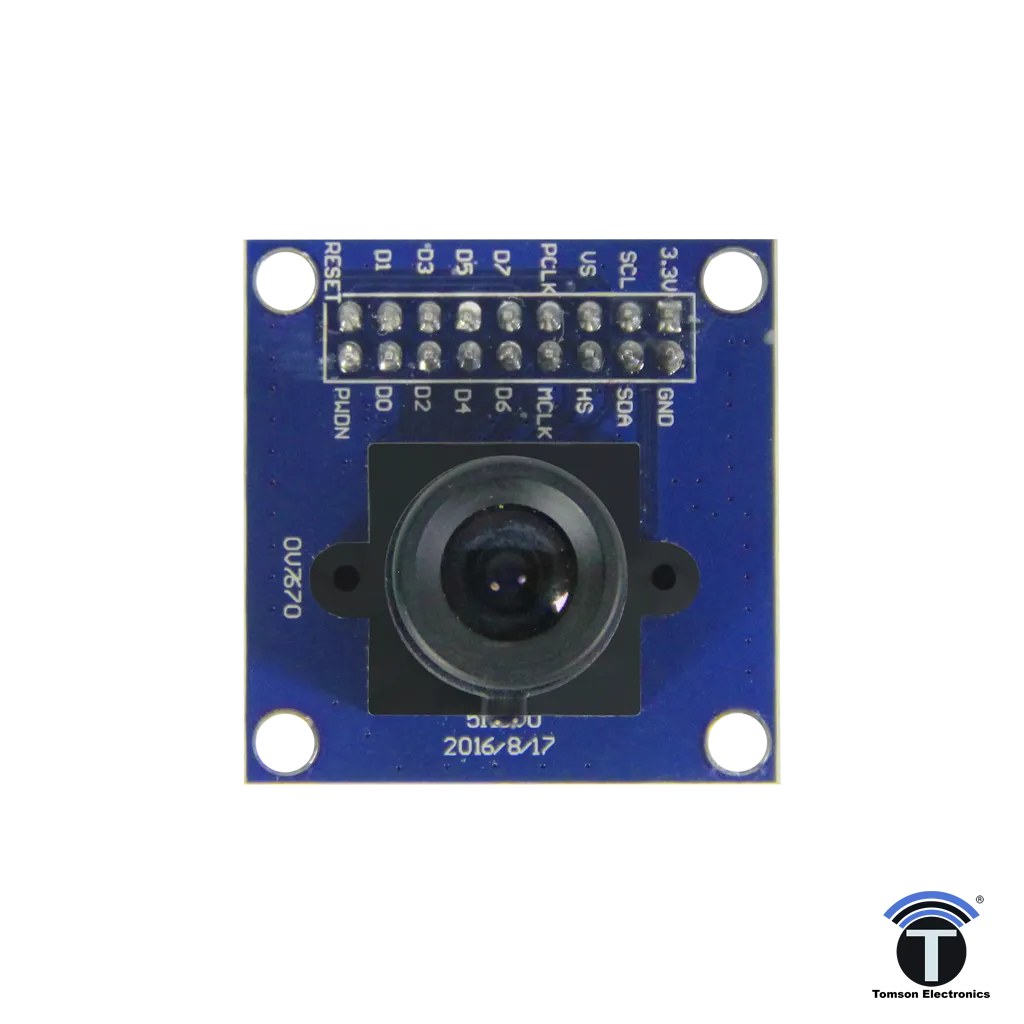

The OV7670 image sensor is a low voltage CMOS sensor that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package. The OV7670 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface.

This product has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface.

In addition, OmniVision CameraChip products use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as Fixed Pattern Noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image.


FEATURES

High sensitivity for low-light operation

Low operating voltage for embedded portable apps

Lens shading correction

Flicker (50/60 Hz) auto detection

De-noise level auto adjust

Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40x30

VarioPixel method for sub-sampling

Automatic image control functions including automatic exposure control (AEC), automatic gain control (AGC), automatic white balance(AWB), automatic band filter (ABF), and automatic black level calibration (ABLC)

ISP includes noise reduction and defect correction

Supports LED and flash strobe mode

Supports scaling

Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats

Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming

Saturation level auto adjust (UV adjust)

Edge enhancement level auto adjust
